Single Facer

The operating side is fully closed and covered.Machine base and wallboard cast iron structure, wallboard thickness of 130mm. Universal joint drive.

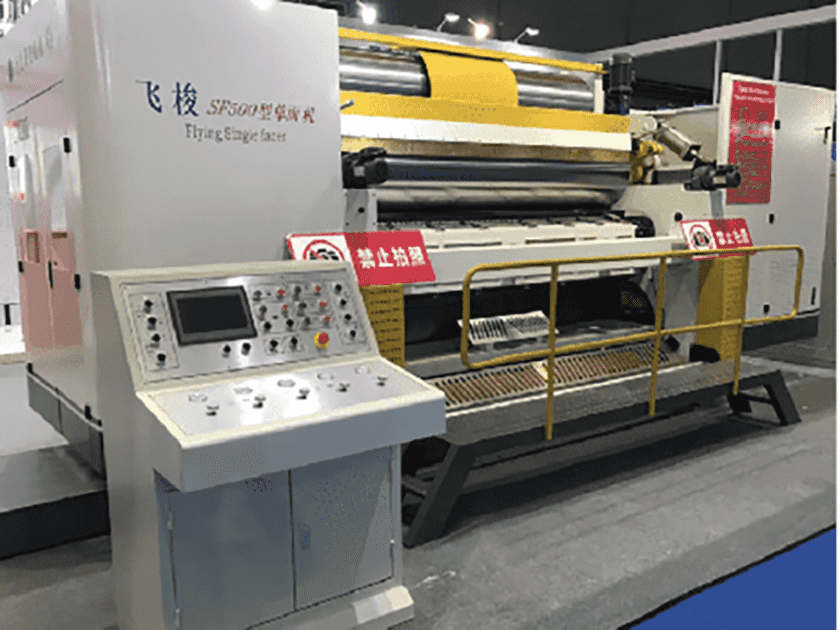

SF500A cassette type single facer

Fingerless vacuum suction type single facer, the upper and lower corrugated roller made of 48 Cr Mo alloy steel.

It adopts hood suction structure with high pressure strong fan. The air source and electrical control are centralized in the same operation cabinet, and the operation side is fully enclosed and covered.

The main corrugating roller: ￠ 320mm (different according to the different types), the pressure roller ￠ 370mm, and the preheating roll ￠ 400mm.

Main corrugating roller: ￠ 360mm (different according to different corrugating type), pressure roller ￠ 415mm, preheating roller ￠ 400mm.

Main roller: ￠ 360mm (different according to different types), pressure roller ￠ 415mm, preheating roll ￠ 400mm.

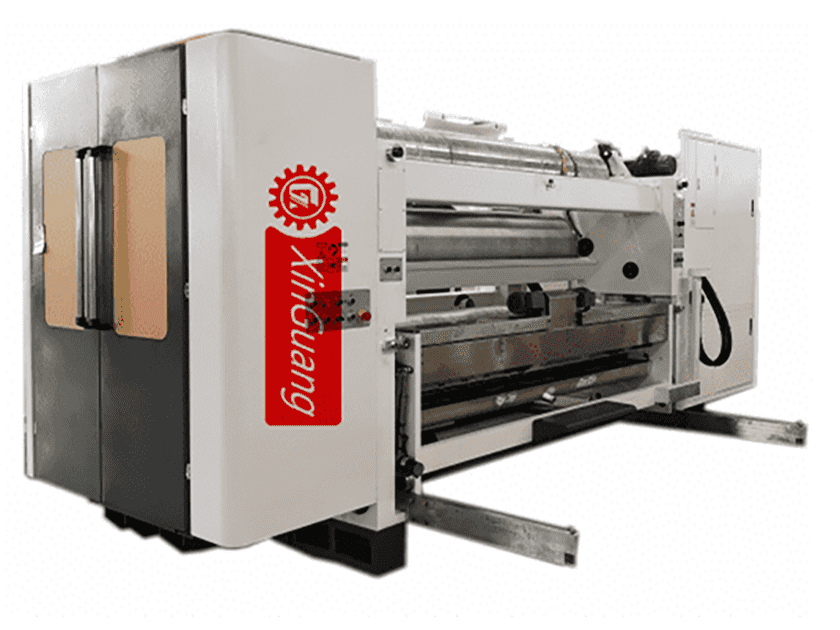

Main corrugating roller：￠405mm（According flute differ），pressure roller￠495mm，preheat roller￠420mm.

Main corrugated roller: ￠500mm (varies according to different corrugated types), pressure roller ￠600mm, preheating roller ￠500mm.

It adopts hood suction structure with high pressure strong fan. The air suction is equipped with silencing device. The air source and electricalcontrol are concentrat
