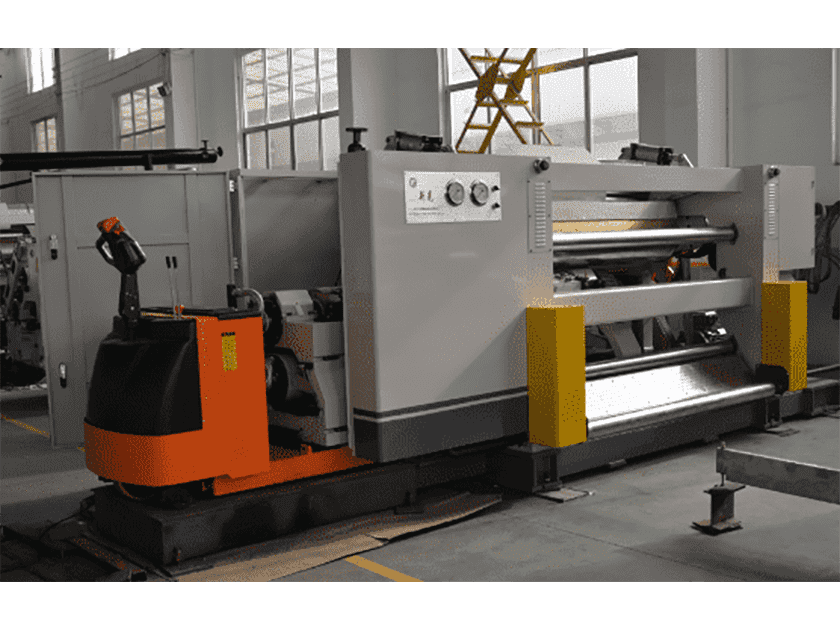

SF360E drawer type single facer

Main roller: ￠ 360mm (different according to different types), pressure roller ￠ 415mm, preheating roll ￠ 400mm.

The negative pressure design with low heat loss makes the core paper uniformly pressed and attached to the surface of the corrugating roller, so that the corrugated can be better formed. Because the pressure is uniform, the top of the corrugated can be better coated with glue, so that the single-sided corrugated paper can fit better.

Quick roll change, 10 minutes. When replacing the corrugating roller, the trolley will be used to transport the whole set of corrugated roller into the machine and fixed on the machine base. Only one button switch is needed to quickly and easily replace the corrugating roller.

The corrugated roller is made of 50crmo high-quality alloy steel, which is heat-treated, and the surface is ground and then treated with tungsten carbide.

The corrugated roller and pressure roller adopt the air bag control system with high stability and air pressure control buffer effect.

The glue feeding amount is controlled by electric adjustment, and the glue separating device is electric. The glue spreading system can operate independently when the main engine stops, so as to prevent the glue from drying up.

The mobile gluing system is convenient for cleaning and maintenance.

The simple operation control system, touch screen operation interface, and color graphic display of operation status, function selection, fault indication, troubleshooting and parameter setting all show that the machine has complete functions, simple operation and humanization.

The built-in preset adjuster has a spray system to adjust the temperature and moisture content of the core paper.

High temperature grease is used for main and auxiliary corrugating roller and pressure roller bearing to ensure bearing life and smooth operation.
