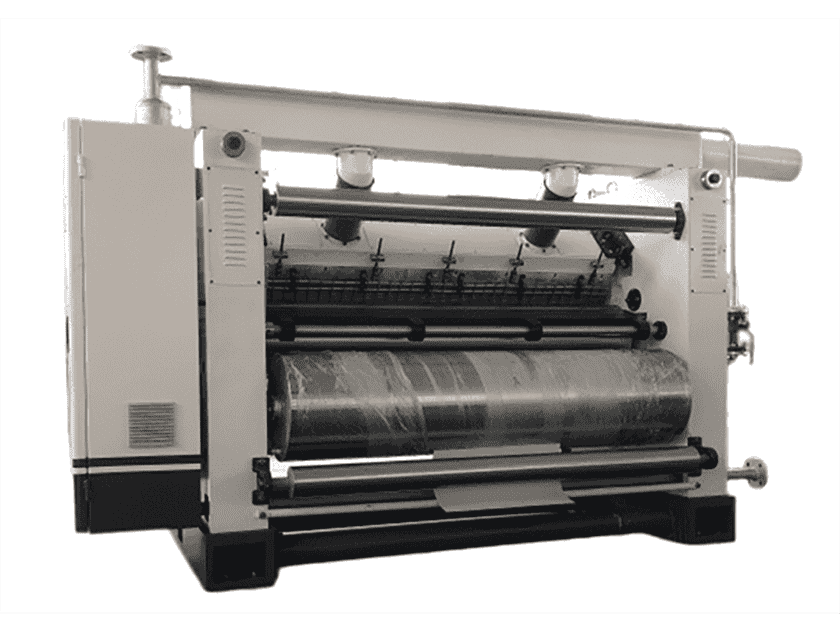

SF18 single facer

It adopts hood suction structure with high pressure strong fan. The air source and electrical control are centralized in the same operation cabinet, and the operation side is fully enclosed and covered.

High quality resin sand castings, wall thickness of 200 mm. It adopts independent gearbox and universal joint transmission structure.

The lifting trolley is installed on the transport overpass, which can be used to take out the tile roller assembly and pressure roller when necessary, which is convenient and quick.

The coating roller unit adopts the overall outward moving structure, which can be moved out of the machine for maintenance and improve the work efficiency.

Spray and humidity control device is adopted to maintain good stability of deformation and avoid dry cracking.

The automatic circulation glue supply system and double air cylinder pneumatic gluing device have good cushioning effect.

The gluing part adopts the integral sliding plate structure, and the surface of the gluing roller is finely ground and engraved with pit pattern and plated with hard chromium.

The corrugating roller is made of 50crmo alloy steel, and the diameter of the main corrugating roll is 346 mm. After quenching and tempering, rough turning, internal hole fine boring, shaft head drying, welding, tempering and stress relief, fine turning, rough grinding, medium frequency quenching, CNC grinding, tungsten carbide treatment.

The main power is driven by frequency conversion motor, which is energy-saving and efficient with low failure rate.

The width of gluing is electrically adjusted to adapt to the width change of base paper.

The size of glue application is electrically adjusted, and the touch screen displays and operates. The gluing gap is transmitted through the encoder with high accuracy.

The power and operation parts are equipped with safety protection net to ensure the safety of personnel when the machine is running.

The mobile gluing system is convenient for cleaning and maintenance.

The simple operation control system, touch screen operation interface, and color graphic display of operation status, function selection, fault indication, troubleshooting and parameter setting all show that the machine has complete functions, simple operation and humanization.

The built-in preset adjuster has a spray system to adjust the temperature and moisture content of the core paper.

High temperature grease is used for main and auxiliary corrugating roller and pressure roller bearing to ensure bearing life and smooth operation.
