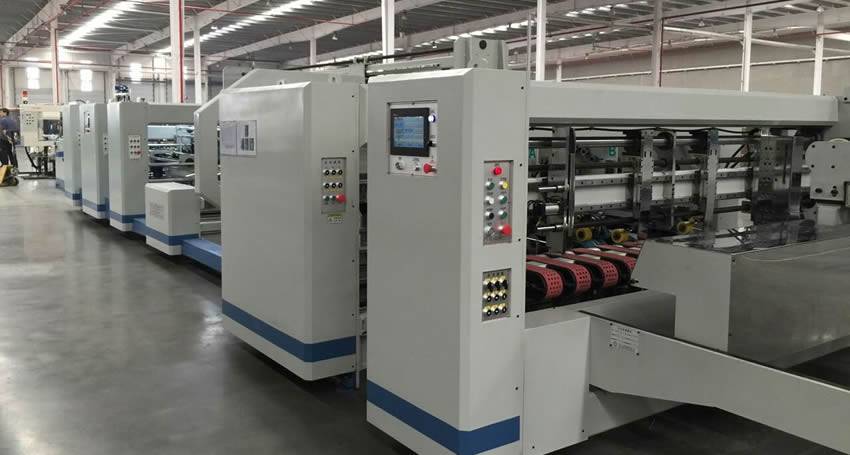

Full automatic carton folder with gluer and stitcher machine

Parameter:
Contour size: 24X3.5X2.1m
Install power: 60kw
Feeding method: suction belt
Size adjusting: electric
Order store quantity: 999
Change order time: 6 minute
Max feeding size: 2400X1200mm
Min feeding size: 1100X330mm
Max carton size: length2400 X width1400 X height1000mm
Min carton size: length1100 X width33000 X height150mm
Carton types can be stitching: with bottom but no cover, with cover but no bottom
Carton types can not be stitching: without bottom and cover
Max thickness: 7mm
Min thickness: 3mm
Wire size: 2.0X0.8
Wire specifications: big roll
With scissors difference auxiliary control function
With count function
With initial and tail stitching reinforcement function
Oblique stitching
Speed: 1000 stitches/minute
Regular carton: 100 cartons/minute
Stitcher: Italy
Control electric part: Taiwan
