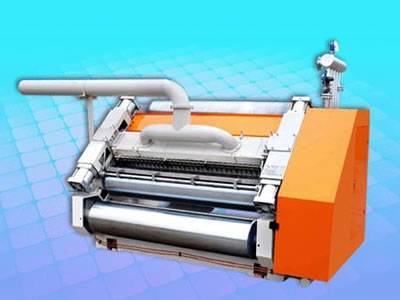

SF-280S Single Facer

SF-280S Single Facer

Purpose and Characteristics:

• Design Speed: 80 m/min
• Effective width: 1400 mm - 2000 mm.

Details Attributes:

• Corrugated roller: φ280 mm.
• Drive reducer box with oil immersed type lubricating to reduce noise keep running stable. adopt gimbal transmission. separate power.
• Corrugating roller, pressure roller and glue roller by pneumatic adjustment.
• Cardboard transmit adopt vacuum suction method, with wind control system. keep flute profiles stable of the lower-roller in the condition of running up.
• Bearing of corrugated and pressure roller adopt high temperature lubricate grease.
• Glue parts auto supply glue circularly.
• The upper-lower corrugating roller are made of 48CrMo high quality alloy steel, after heat-treatment. The hardness HRC 58°- 60°,the surface be grinded.
• The glue part surface are treated by special mesh snicked and chromeplated.
• Motorized or manual glue width dividing to match the paper width.
• Glue part can be running independently or non-independently while stopped. Adopt main motor frequency conversion control. (optional)
