Pneumatic long tube machine (first invention in china) model SQ-9

• Mark & model: This machine is especially designed for blowing sewer tube, washing machine tube and seeding machine tubes with PE/PP raw material.
• Origin: Asia and Pacific Area China.
• Quality standard: International.
• Submit date: 2013-06-26.
• H.S.Classification: Machinery & Electronics Special Purpose Machinery 8438 Machinery nesoi for the industr. prep of food or drink etc. & parts thereof.

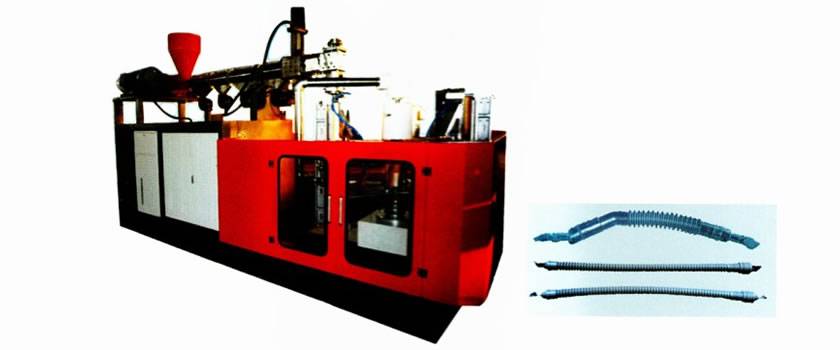

Product profile: Pneumatic long tube machine (first invention in china) model SQ-9

This machine is especially designed for blowing sewer tube, washing machine tube and seeding machine tubes with PE/PP raw material. It could achieve full automatic running perpose such as automatic feeding, automatic blowing and automatic demolding. The maximium tube length could reach 1 meter. Machine could keep stable running and daily production capacity could reach 12000 - 160000 pieces. Every shift needs one person.

model parameter	SQ-9
Theoretical outputpcs/hour	600 - 800
Motor power kw	15
Heating power kw	6
Size(L × W × H) mm	3200 × 1300 × 1200
Weight kg	1000
Max length of the product m	1
Screw diameter mm	75
Max plasticizing capacity kg	70
Screw L/D ratio	25:1
Air consumption m3/min	0.4
