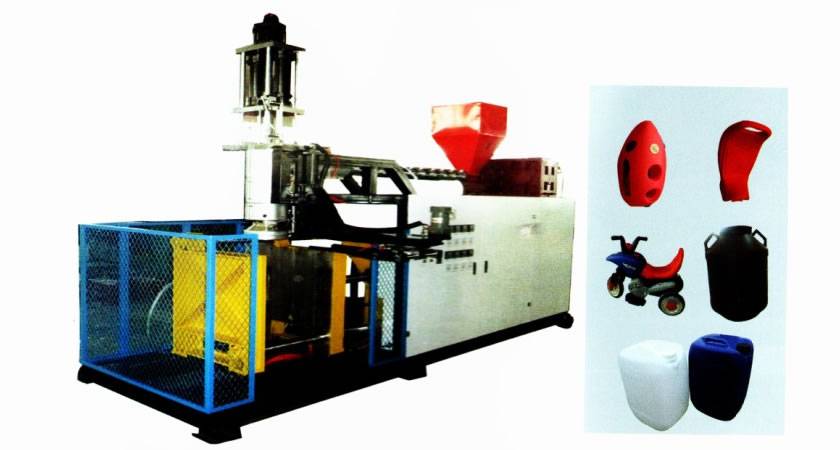

Electrical full automatic hollow blow molding machine model SQDD

• Mark & model: Electrical full automatic hollow blow molding machine model SQDD.
• Origin: Asia and Pacific Area China.
• Quality standard: International.
• Submit date: 2013-06-26.
• H.S.Classification: Machinery & Electronics Special Purpose Machinery 8438 Machinery nesoi for the industr. prep of food or drink etc. & parts thereof.

Product profile: Electrical full automatic hollow blow molding machine model SQDD

Name	SQDD80	SQDD100	SQDD100A
Max product volume L	50	80	120
Dry cycle (empty load) pic/h	400	360	360
Screw diameter mm	80	100	100
Screw L/D ratio	25	25	28
Screw drive power kw	22	45	55
Screw heating capacity kw	18	20	22
No. of heating zone	4	4	4
Output of HDPE kg/h	80	160	200
Oil pump drive power kw	3	6	6
Clamping force kn	60	100	120
Mold stroke mm	350-850	500-1200	500-1200
Max mold size	410 × 600	800 × 1000	800 × 1250
Material storage volume L	2.6	12.8	16
Max die diameter mm	280	430	450
Die heating power kw	7.5	9.5	10.8
Die heating segments	4	5	5
Blowing pressure	0.8	0.8	0.8
Air volume m3/min	1.0	1.2	1.6
Cooling water pressure Mpa	0.3	0.3	0.3
Water consumption L/min	80	100	150
Machine size (L × W × H) m	4.2 × 1.8 × 3.5	5.4 × 2.5 × 4	54 × 2.5 × 4.5
Machine weight ton	4	6	8
