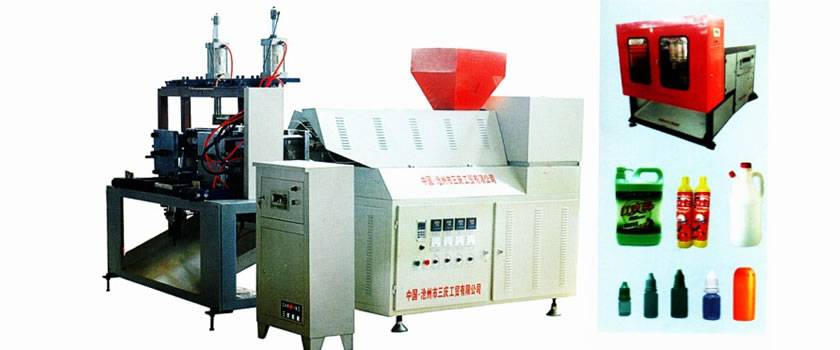

Reciprocating blow molding machine model SQPY-05

• Mark & model: This machine is suitable to produce small lot of against mouth plastic bottle. We can manufacture both pneumatic hydraulic types of machine. It could access with 220 voltages easily.
• Origin: Asia and Pacific Area China.
• Quality standard: International.
• Submit date: 2013-06-26.
• H.S.Classification: Machinery & Electronics Special Purpose Machinery 8438 Machinery nesoi for the industr. prep of food or drink etc. & parts thereof.

Product profile:

This machine is suitable to produce small lot of against mouth plastic bottle. We can manufacture both pneumatic hydraulic types of machine. It could access with 220 voltages easily. The machine is best for "special request with inner diameter of sealing surface" or "bottle weight inner plug" such as source bottle, liquid detergent bottle. Cosmetic bottle and etc. this machine was controlled by PLC system. With characters such as high stability, less resistance, high precision and etc.

Model parameters	Translational 2 station machine model 55	Translational 2 station machine model 65
Max bottle volume ml	1500	2500
Screw diameter mm		6555
Screw L/D ratio	25:1
Motor power kw	7.5	11
Screw speed R/min	20-60
Plasticizing capacity kg	40	60
Number of die head	1-2
Applicable air pressure Mpa	0.6	0.6
Weight kg	1500	2000
Way of control	PLC control
Speed regulating method	Frequency control of motor speed
