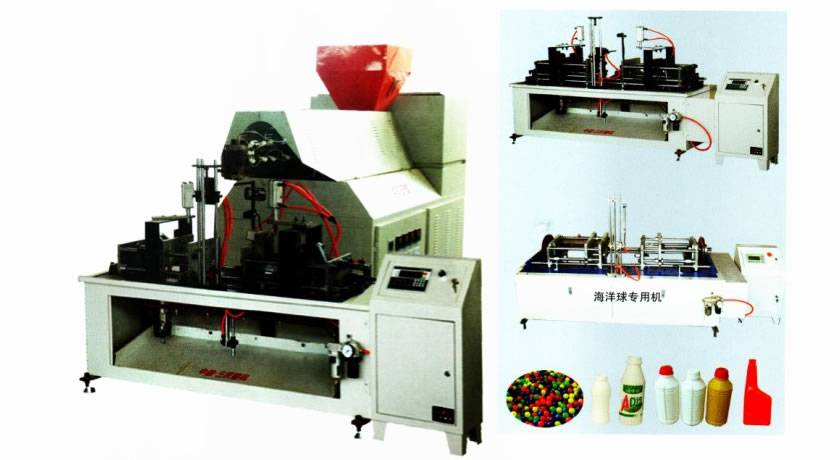

Full automatic reciprocating blow molding machine model SQ-

• Mark & model: This reciprocating blow molding machine designed quite simply and practically. It is suitable to produce small lot of plastic bottles and best for machine upgrading.
• Origin: Asia and Pacific Area China.
• Quality standard: International.
• Submit date: 2013-06-26.
• H.S.Classification: Machinery & Electronics Special Purpose Machinery 8438 Machinery nesoi for the industr. prep of food or drink etc. & parts thereof.

Product profile: Full automatic reciprocating blow molding machine model SQ-

This reciprocating blow molding machine designed quite simply and practically. It is suitable to produce small lot of plastic bottles and best for machine upgrading. The machine is easy to access with 220v power supply. The machine is controlled by PLC system in order to achieve stable operation low resistance and high precision characters. (to solve the "difficult to remove edge problem" electrical of hydraulic powered die spotting machines are ready for your option).

model parameters	Model 45	Model 55	Model 65
Max bottle volume ml	500
Max bottle diameter cm	6
Theoretical capacity pics/h	500 - 1500
Allowable mould width mm	120
Allowable mould thickness mm	60-90
Air consumption m3/min	0.4
Weight kg	220
Size (L × W × H) mm	1350 × 500 × 1000
Applicable raw material	PP/PE/PVC
Way of control	PLC control touch screen
Screw diameter	45	55	65
Type of work station	Double work station/small	Double work station/medium	Double work station/big
Screw L/D ratio	25:1
Motor power	5.5	7.5	11
Heating power	3	3	5
Plasticizing capacity	25	40	60
