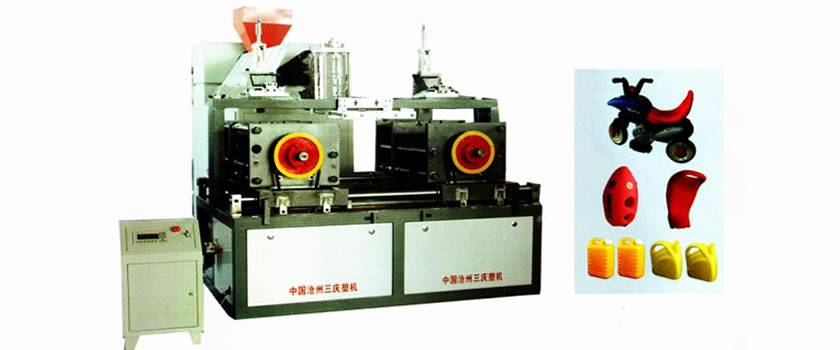

Double station electrical blow molding machine model SQD-5L

• Mark & model: This machine is electrical powered die spotting machine, we could provide either electrical or hydraulic powered machines, it is suitable to produce 5 liter engine oil bottle.
• Origin: Asia and Pacific Area China.
• Quality standard: International.
• Submit date: 2013-06-26.
• H.S.Classification: Machinery & Electronics Special Purpose Machinery 8438 Machinery nesoi for the industr. prep of food or drink etc. & parts thereof.

Product profile: Double station electrical blow molding machine model SQD-5L

This machine is electrical powered die spotting machine, we could provide either electrical or hydraulic powered machines, it is suitable to produce 5 liter engine oil bottle, children's bike, washing detergent bottle and etc. this machine is controlled by PLC system. It has the characters such as stable operation, less resistance, high precision, saving energy and etc.

Model parameters	Translational 2 stations machine model 55	Translational 2 stations machine model 65
Max blowing volume ml	2500	5000
Screw diameter mm	65	75
Screw L/D ratio	25:1
Motor power kw	11	15
Screw speed R/min	20-80
Plasticizing capacity kg	50	65
Number of die heads	Single	Single
Applicable air pressure MPA	0.8	0.8
Weight kg	1500	2000
Control	PLC
Speed regulating method	Frequency control of motor speed
