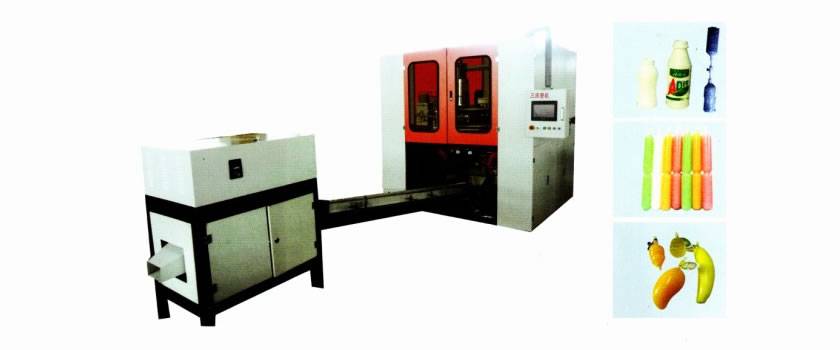

Multiple modles vertical rotary style full automatic blow molding machine SQ-12

• Mark & model: This machine is 12-48 work stations mechanical and pneumatic powered vertical rotary style blow molding machine.
• Origin: Asia and Pacific Area China.
• Quality standard: International.
• Submit date: 2013-06-26.
• H.S.Classification: Machinery & Electronics Special Purpose Machinery 8438 Machinery nesoi for the industr. prep of food or drink etc. & parts thereof.

Product profile: Multiple modles vertical rotary style full automatic blow molding machine SQ-12

This machine is 12-48 work stations mechanical and pneumatic powered vertical rotary style blow molding machine, it is especially applicable for blowing every kinds of plastic bottle or soft hose product such as ice lolly. Cartridge, nutrition bowl, eye dropper, jelly skin, fruit milk bottle, chemical bottle and etc. this machine is able to automatic feeding. Automatic cutting mouth, automatic cutting tail. It achieves automatic production purpose completely and reduced labor cost. Daily priduction capacity could reach 120000 - 500000 pieces.

model parameters	Vertical rotary style full automatic blow molding machine SQ-12
Work station	12	16	24
Screw diameter mm	55	80	120
Weight kg	3000	5000	9000
Motor power kw	10.5	22	58
Size (L × W × H) mm	6.5 × 2.6 × 2.4	8.5 × 3.6 × 3.5	12 × 5 × 4.5
Applicable material	PE/PP	PE/PP	PE/PP
Air consumption m3/min	0.4	0.8	1.6
Air pressure kg	8	8	8
Theoretical output pcs/h	5000	8000	15000
Heating power kw	8	15	26
