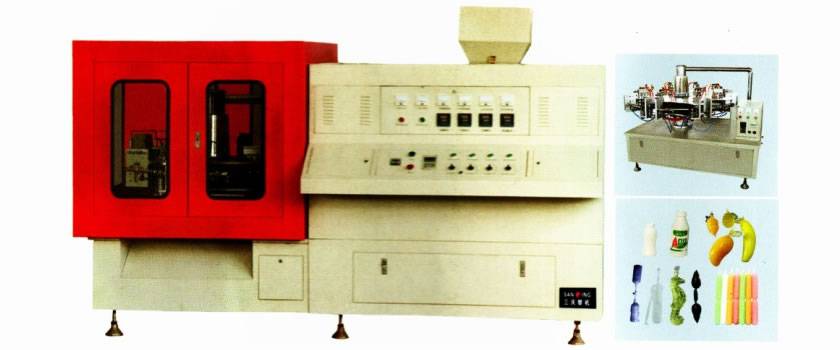

Full automatic blow molding machine SQ-6

• Mark & model: This machine can be used to make plastic package which is blew form side. Such as bottles for medicine, juice, beverage and cosmetics.
• Origin: Asia and Pacific Area China.
• Quality standard: International.
• Submit date: 2013-06-26.
• H.S.Classification: Machinery & Electronics Special Purpose Machinery 8438 Machinery nesoi for the industr. prep of food or drink etc. & parts thereof.

Product profile: Full automatic blow molding machine SQ-6

This machine can be used to make plastic package which is blew form side. Such as bottles for medicine, juice, beverage and cosmetics. It adopts screw extruding blow molding process which is frequency converted and automatic temperature controlled. As a combination of electric equipment, pneumatic device and machinery. It is stable in performance, easy to operate and suitable for manual production. Three patented techniques are used in this machine which is optional to install automatic tailing device, automatic filter changer, and automatic mouth-cutting device.

model parameters	4 station combine model 45/55	6 station combine model 55/65	8 station combine model 65/75
Max bottle volume	500	800	1500
Max bottle diameter cm	7	9	10
Mold size (L × W × H) mm	120 × 120 × 300	120 × 120 × 300	120 × 120 × 300
Screw diameter mm	45/55	55/65	65/75
Screw L/D ratio	25:1
Motor power kw	5.5/7.5	7.5/11	11/15
Heating power kw	3	5	8
Air consumption  m3/minute	0.4
Plasticizing capacity kg	25/40	40/55	55/70
Weight	1500	2000	2500
size (L × W × H) mm	3400 × 1600 × 1740	3600 × 1700 × 1800	3600 × 1800 × 1900
Applicable raw material	PE/PP/PVC/EVA/PS
Speed regulating method	FREQUENCY CONTROL OF MOTOR SPEED
Theoretical output pcs/hour	1000 - 6000
