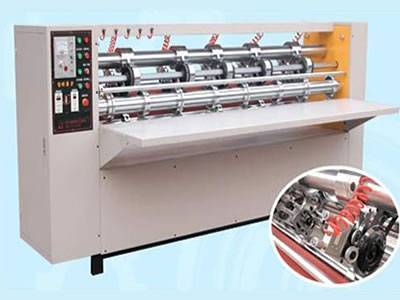

Thin Blade Slitter Scorer

Thin Blade Slitter Scorer

This machine is a kind of productive equipment with an integral whole process to separately slice the corrugated paperboard and roll the line. The working axle is used the good quality seamless steel pipe and has the advantages such as wear-resisting, long using life and so on. The mould of the machine can be made for three times of rolling the line and two times of prepared pressing, and it is applicable to the low-middle-high scaled paperboard for rolling the line.

Technological Parameter:

Model number	Over the paper width	Over the paper thickness	Working speed	Shape size	Whole machine weight (about kg)
1800	1750 mm	10 mm	180 m/min	2200 × 870 × 1070	1100
2000	1950 mm	10 mm	180 m/min	2400 × 870 × 1070	1300
2200	2150 mm	10 mm	180 m/min	2600 × 870 × 1070	1500
2500	2450 mm	10 mm	180 m/min	2900 × 870 × 1070	1800
