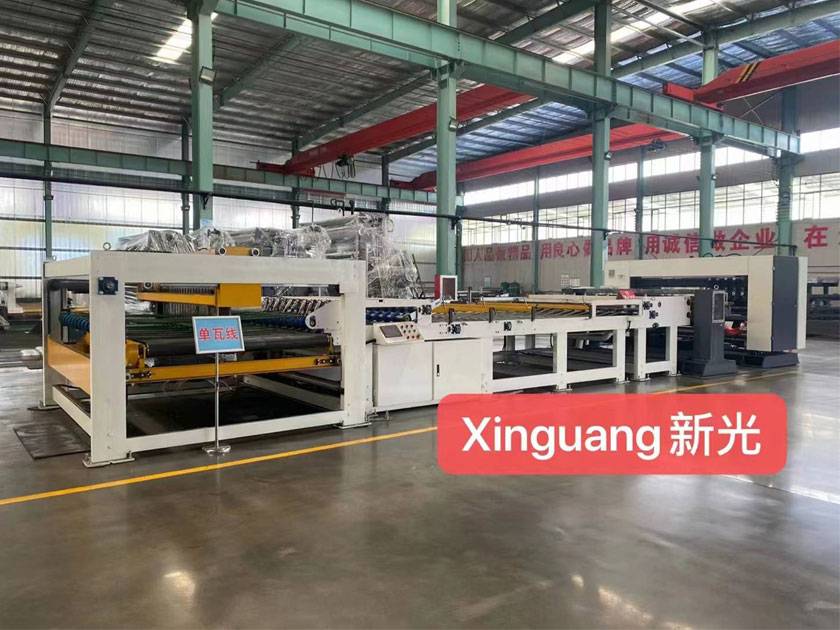

single blade NC slitter cutter with lift stacker

AC servo control the helical knife, touch screen display. Stacker adjustable count hierarchical output cardboard, maximum length of 1.3 meters accumulation. Pull out the paper feeding motor are both frequency control, CNC thin knife blade slitting five groups. helical knife cross cutting.

Features:

maximum working width: 1400 - 2500 mm.

operating direction: right or left position (determined according to customer plant).

the maximum mechanical speed: 150 m/min.

mechanical configurations: Computer spiral knife crosscutting.

the minimum cutting length: 300 mm 6, maximum cutting length: 9999 mm .

cutting accuracy: ± 1mm (uniform) ± 1.5mm (non-uniform).

¢ 200 thin knife 5 set.
