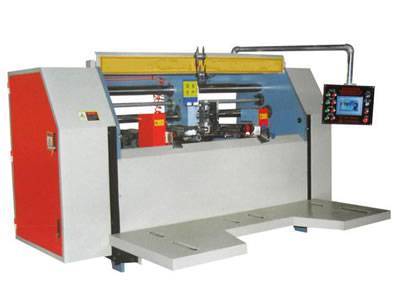

Semiauto carton stitcher

Semiauto carton stitcher

Features:

• Taiwan imported double servo motor drive, Accurate precision, reduce the mechanical transmission parts, can effectively reduce the mechanical failure rate.
• All control system adopt Taiwan Delta PLC control system.
• Contactor, relay, breaker adopt France Schneider brand, Photoelectric and proximity switch with South Korea Autonics brand.
• Bottom die, blade adopt Japan's tungsten steel production (wear).
• The whole stitch head adopt specifical tungsten, CNC precision machining.

Detail Attributes

• Change carton size and adjust carton nail distance only take 30s can be completed, greatly save time it is easy to operate. Can nail box & has a lid without cover carton box (with and without cover is required at time of order to nail in mechanical specification).
• After a period of automatic counting function, completes the product number can be set according to the number (1-99) fold, to the end of the conveying machinery, convenient packing banding.
• Machine speed: 500 nail/min.
• Nail distance: 30-120 mm Arbitrary adjustable.
• A dual purpose, i can stitch single piece and double piece, and irregular carton.
