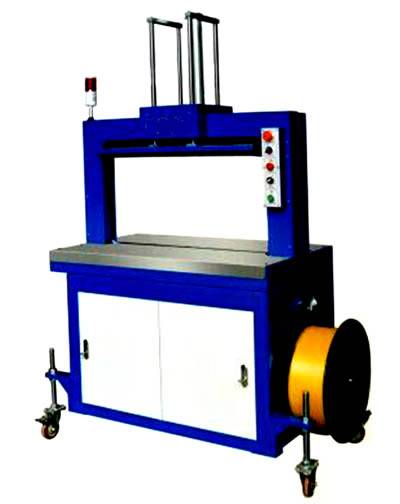

Pressure Type Carton Strapper

Product instruction

• Install Size: L1360mm*W660mm*H1792
• Loading size: L1500mm*W800mm*H1900mm
• Operating table height: 850mm
• Loading bearing: 80kg
• Net weight: 120kg
• Strip width: 5mm
• Strip reel:
  Inner diameter: 200-210mm
  Outer diameter: 400-450mm
  Width of strip reel: 175-190mm
• Speed: ≦1.5seconds/strip
• Strapping size:
  MinimumW80mm*H60mm
  Maximum small than the frame
• Sticking method:
  Hot melt
  Bottom sticking, sticking area≧90%, position tolerance:≦2mm
• Strapping force: 0-45kg
• Power: 600W, 10A
• Electric: 1P, 220V, 50Hz
• Pneumatic source: 0.4-0.6Mpa
• Working voice: ≦75dB(A)
• Adjustable option: frame size and strip width
• Instruction: standard frame size W650mm*H500mm

We suggest the PP strip as below:

• Material: polypropylene
• Specification: width 5-9mm, thickness 0.5-0.8mm
• Strip reel width: 170-190mm
• Strip reel ID: 200-210mm
• Strip reel OD: 400-450mm
• Max strapping force: 45kg

Install site condition:

• Temperature: -20-40℃
• Moisture: ≦90%
• Basement: max load bearing 350kg/m/²
• Space: maximum 2000mmX1500mm
