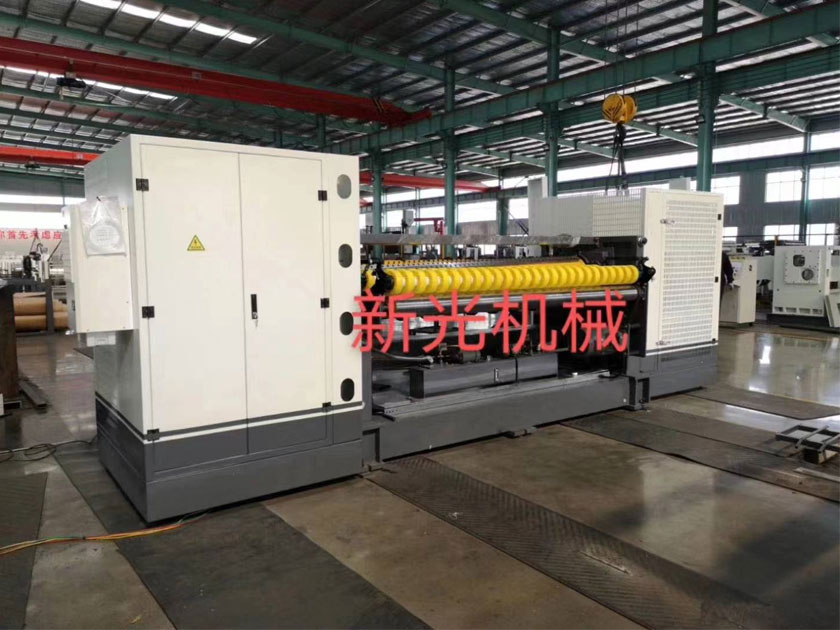

NC35D Cut off Machine

Product Attributes

Max. design speed: Helical knives 300 m/min

Effective width: 2200 mm - 2800 mm.

Characters:

It can store 200 groups of orders, change the cutting specifications quickly and accurately, change the orders without stopping the machine, and realize computer networking to facilitate production management.

High frequency quenching of precision forged steel is adopted for the cutter shaft transmission gear to realize no backlash transmission. Advanced keyless connection mode is adopted to achieve high transmission accuracy.

The blade of the crosscutting machine adopts the structure of edge inserted steel spiral cutter, with serrated blade shape. Scissors type shear, small shear force, long blade life.

The front and rear paper feeding wheels adopt the way of pressing paper with sun wheel, so the conveying is stable, the pressure is uniform, and it is not easy to crush the plate or cause blockage.

This model is energy storage braking (non energy consumption braking), low energy consumption in the production process, the average power consumption is 1 / 3 of the ordinary NC cutting machine, saving more than 70% of electricity, achieving the goal of saving money.

The precision adjustable backlash free gear ensures the accurate meshing and balanced operation of the cutting edge.

Oil bed lubrication is used to supply oil, lubricate and cool the gears.

Tool roller: high quality precision forged steel, with good stability after balance treatment.
