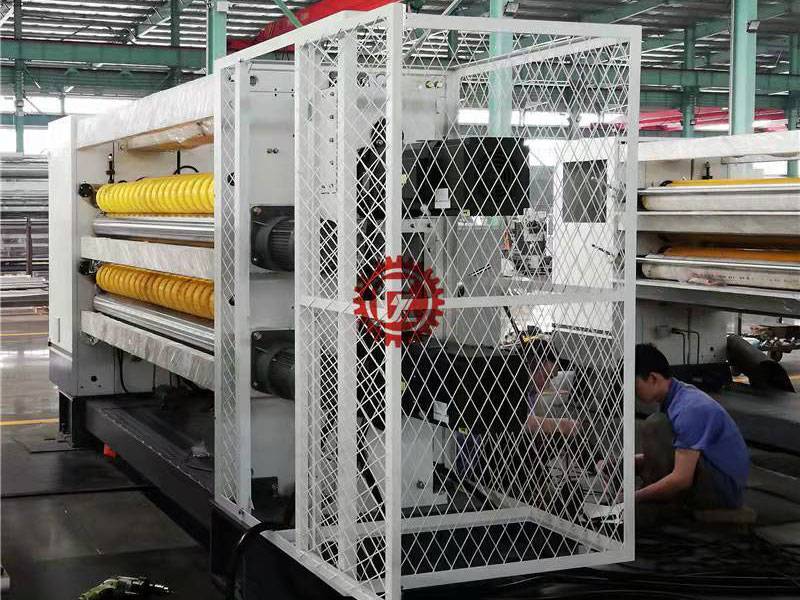

NC20 cut off machine

Product Attributes

Max. design speed: Helical knives 180 m/min

Effective width: 1800 mm - 2200 mm.

characters:

It can store 200 groups of orders, change the cutting specifications quickly and accurately, change the orders without stopping the machine, and realize computer networking to facilitate production management.

The cutter shaft drive gear is made of precision forged steel with high frequency quenching to realize the non backlash transmission. The advanced keyless connection mode is adopted, and the transmission precision is high.

The blade of the cross cutting machine adopts the structure of the spiral blade with steel inlaid edge and the sawtooth type. Scissors type shear, small shear force, long blade life.

The front and rear paper feeding wheels adopt the sun wheel paper pressing mode, with stable conveying and uniform pressure, which is not easy to crush the board or cause blockage.

This type of brake is energy storage type (non energy consumption braking), with low energy consumption in the production process. The average power consumption is 1 / 3 of that of the ordinary NC cutting machine, saving more than 70% of the electricity and achieving the goal of saving money.

The precision adjustable backlash free gear ensures the accurate meshing and balanced operation of the cutting edge.

The oil layer lubrication is used to supply oil, lubricate and cool the gears.

The knife roller is made of high-quality precision forged steel with good stability after balance treatment.
