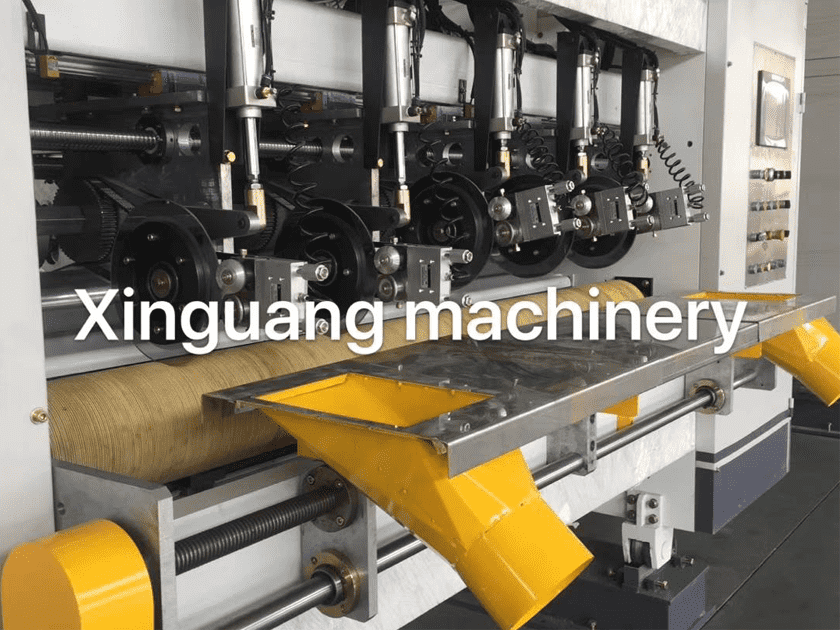

FY-C thin blade slitter scorer

Parameter

Width: 1800mm

Design Speed: 200m/minute

Producing speed: 120-150m/minute

Minimum cutting width: 160mm

Minimum scorer width: 70mm

Precision:±0.5mm

Moving left-right: ±100mm

Characteristic

Synchronous servo motor controls tool and wire arrangement. Automatic reset. Precise size. Order change time is 15 seconds. The combination of two machines can realize the immediate change of order without speed reduction.

Schneider PLC control system, adopting CANopen bus system, with order management function, equipped with speed synchronous signal input interface with dryer.

The human-computer interface adopts a 10.4-inch color touch screen to store 999 groups of orders, realize automatic or manual order change and automatic fault alarm.

Two pressing forms: convex to concave and convex to flat. The two pressing forms can be automatically converted. The depth of pressing wheel can be automatically controlled by computer, with good alignment and easy bending.

It adopts thin tungsten steel alloy knife with sharp blade and service life of more than 8 million meters. The sharpening is controlled by computer, automatic sharpening or manual sharpening, which can cut and sharpen at the same time, improving the production efficiency.

Imported synchronous belt drive is adopted, thin cutter base and pressing line base are supported by linear bearing, with accurate positioning size and no accumulated error.

Independent variable frequency motor is used for cutting and pressing line. Automatic positioning size of waste suction port when changing order

Equipped with air tank and low pressure protection function
