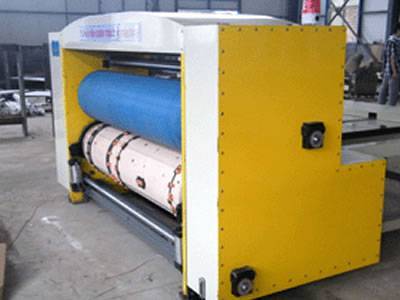

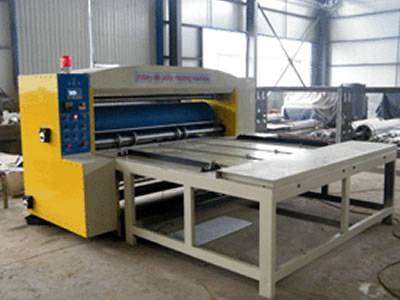

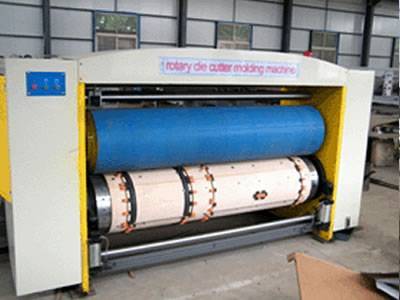

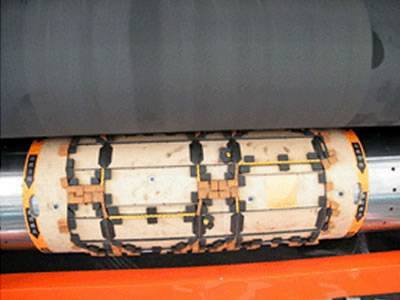

Carton Rotary Die-Cutter

Carton rotary die-cutter

Specification

• Adopt chain sending paper.
• Roller adopt automatic equipment transverse moving 40 mm.
• Adopt different speed equipment, automatic adjust upper roller line speed.
• Grinding-cutting adopt Taiwan splendid gluing boot.
• Install upper roller automatic repairing function.
• This machine finished cutting, scorer, cut corner etc. function one time.

Model	MR1300	MR1600	MR1800	MR2000
Mechanical maximum speed (Piece/ min)	60	60	60	60
Rapid economic growth (Piece / min)	40	40	40	40
Maximum feed size (mm)	1380 × 1300	1380 × 1600	1380 × 1800	1380 × 2000
Minimum feed size (mm)	400 × 600	400 × 600	400 × 600	400 × 600
To adapt to the thickness of cardboard	3-5 ply
Maximum cutting size (mm)	1380 × 1200	1380 × 1500	1380 × 1700	1380 × 1900
Main Motor Power (KW)	4.0	4.0	4.0	4.0
