Carton die cutting machine

 Carton die cutting machine

The die cutting machine cuts the cardboard into a desired shape by making a pre made template. It has the advantages of high precision, smooth trimming, good surface quality and suitable for automatic packaging production. But the shortcoming is that the equipment investment is large and the production efficiency is not high. Die cutting machines are usually classified according to their templates and tool pads.

Rotary die cutting machine:

The die plate and the knife pad (providing die cutting pressure) are mounted on two relatively moving cylinders, and the cardboard is molded into the desired shape by the relative motion of the roller.

Rotary to flat die cutting machine:

The die plate is mounted on the plate and moves in a straight line reciprocating motion, while the die cutting pressure is realized by the circular motion of the cylinder. www.chinacartonmachine.com

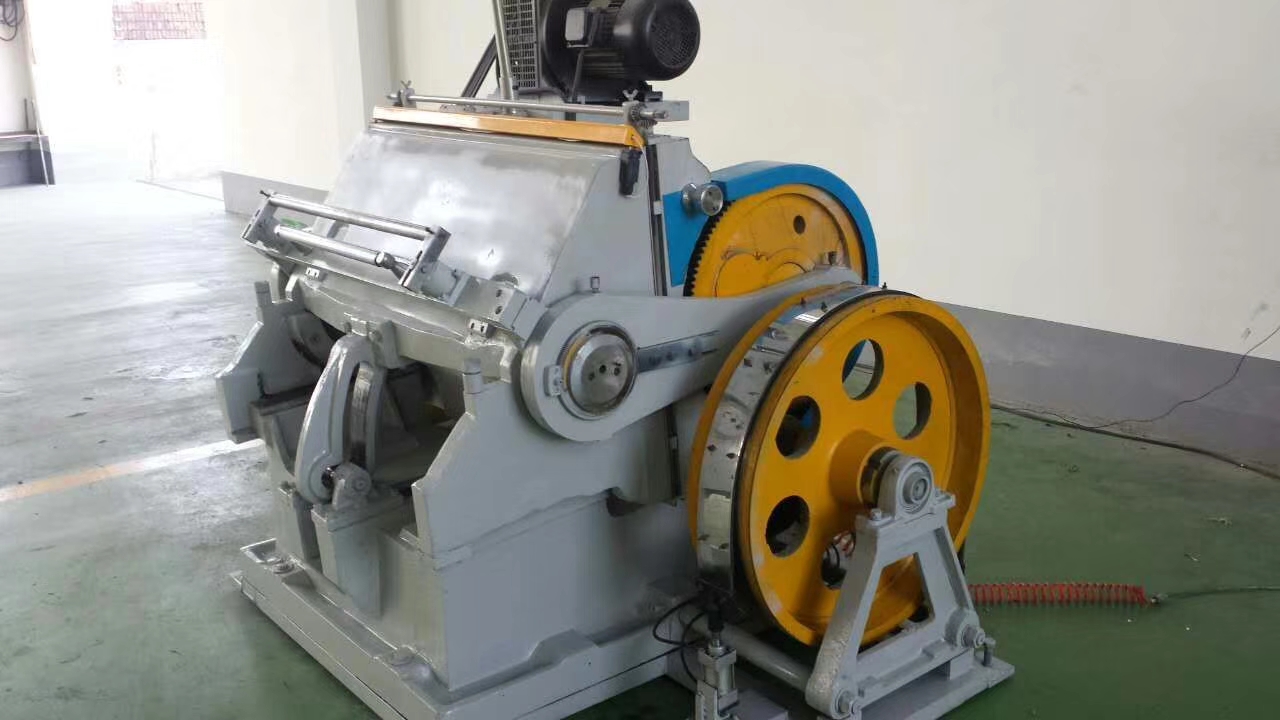

Flat die cutting machine:

The formwork and the knife pad are mounted on two open and close plates. They are integral and split. The so-called integral type is what we call the "tiger mouth". The size of the processable cardboard is usually small, generally no more than 1.5m * 1.5m. When the size of cardboard needed to be processed is large, it can only use split type. The split type can be divided into semi-automatic and full automatic according to its feeding mode.
