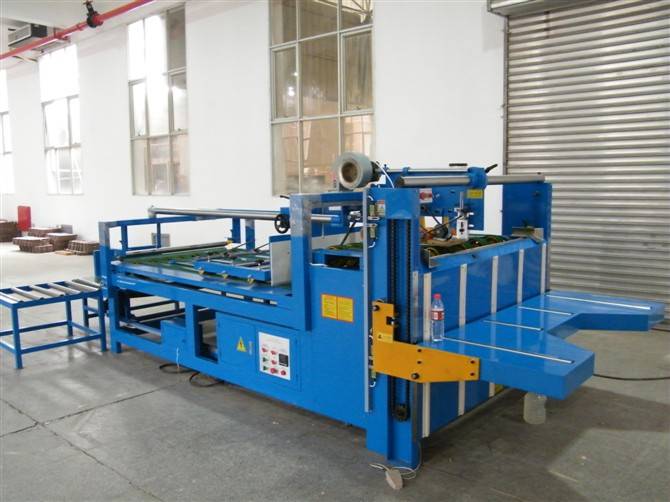

Semi automatic carton folder gluer machine function introduction

Semi automatic gluing machine is the last working procedure of carton machinery and equipment manufacturing Carton, mainly for single corrugated cardboard forming the bond, to meet the many varieties, small batch production requirements, to meet the food, cotton export packing, is an ideal equipment for carton. The utility model has the advantages of high production efficiency, low labor intensity, simple operation, stable performance and reliable operation.

Function: 1 after the automatic counting, do a good job of the number of sheets (1-99) can be set according to the number of stacked conveyor to the end, easy to bundle.

2 air blower function to speed up the carton to reduce the production of defective products

3 semi-finished products into the finished product to be placed neatly only two people to operate, easy to operate, reduce wages.

4 the middle of the beat function, effectively avoid the phenomenon of scissors fork appeared

5, the carton packaging machinery output for 8 hours about 10 thousand

Semi automatic gluing machine can be divided into two types: the first in the country to use the more popular, mainly used for carton folding, gluing, shaping, conveying, pressurizing, counting, drying and other functions, the whole machine is composed of feeding, glue department, plastic department, transportation department, pressure receiving part number. The operation procedure is by hand to have finished the whole piece of cardboard folding back into the glue, glue by automatic cardboard in bonding parts of glue, automatic transmission pressure, dry and eventually completed by the roller to the Department of plastic shaping after reaching a certain number one by one. The semi-automatic sticky box machine is suitable for packaging box to cover a standard folded in half wave boxes, and the requirements of the corrugated carton "on line" must have pressure, or stick a carton may produce waste. The machine is very suitable for die cutting of the board, the biggest folding carton size is 1200mm * 1200mm, minimum 400mm * 400mm, production speed is 50 ~ ~ 70 pieces per minute. www.chinacartonmachine.com

In addition a semi automatic gluing machine, which is based on the structure of box form evolved, the sticky box machine is the automatic feeding department, burnish glue department, transportation department, Department of pressure manual folding. Manual folding workers to a certain amount of pressure and then put into the work of the department. It is characterized by the feeding part of the automatic feeding speed, but can not send folded cardboard, can only be sent to the flat plate, the feeding of the machine is similar to the front feeding paper structure. It is made of special adhesive tape, roller and so on. At the same time it can complete two boxes of cardboard for bonding, and can be completed on the adhesion of special-shaped carton, carton boxes and other special mouth wide. It's grinding, glue work can be very accurate in the need to play the part of the hair, adhesive glue, also can be the local spray of shaped box using the machine configuration of the nozzle. The machine has 12 working positions on both sides, and at the same time, there are 12 workers in production operation, the production speed is very impressive.
