Production management system for corrugated board production line

Automatic paper splicer machine

The automatic paper receiving machine, to avoid unnecessary waste of paper, reduce downtime and quality problems in the production line of corrugated board production, ensure high production speed and stability of the whole production line of high quality board.

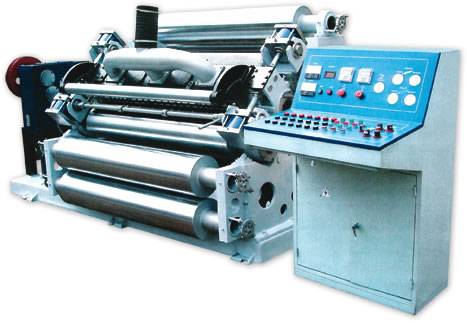

Tungsten carbide corrugated roller

As a single facer's heart of the corrugated roller, corrugated cardboard quality plays a decisive role, but also on the economic impact of cattle direct impact. Tungsten carbide corrugated roller is the use of thermal spraying technology of tungsten carbide alloy powder spray to the surface of the corrugated roll forming tungsten carbide coating of a special process, compared with the general corrugated roller life 3 times - - 6 times. In the roller life hit, its high Leng is almost unchanged, to ensure the stable quality of corrugated cardboard, reduced by 2% ~ 8% of the corrugated paper and glue dosage, reduce waste.

Paste machine contact pressure stick

Paste machine contact bar is an arc plate spring and uses a lot of wear-resistant connection, spring always let the arc piece plate uniformly attached to the paste roll, even paste roll wear plate spring sag, also with depression, always let the corrugated paper paste evenly attached to the roller. In addition, spring balance will automatically adjust the height according to the thickness and shape of the corrugated paper transform, make corrugated paper into paste machine on the paste paste after the corrugated height and paste machine when Corrugated High Assurance constant, effective control and greatly improve the quality of coating cardboard.

The hot plate touch plate www.chinacartonmachine.com

The hot plate contact plate is used to replace the traditional gravity roller contact heat transfer method. It is the use of special wear-resistant material plate connected to each plate is provided with a spring balance, so that each plate can fully contact pressure in the hot plate, increasing the heating area of cardboard, improve the efficiency of heat transfer, which can improve the speed and ensure the type, good by terminal Leng the strength of the paperboard and increase the thickness of the corrugated cardboard, no degumming, no foaming, good fit, reduce the rejection rate.

Automatic paste making system

The paste making process is the most important process in the whole production process. The traditional paste formulation is single, which is easy to cause the material to be inaccurate because of the human factor, and the quality of the adhesive is unstable. Automatic paste making system is set technology, machinery and automatic control of a typical complex as a whole, can be carried out on the formula function, paste making system in the historical data, real-time data, dynamic monitoring function, man-machine dialogue, paste making stable quality controlled, can make the production line more stable operation, reduce the human factor, completely to solve the cardboard blister, protruding, has quality problems, reduce the reject rate.
