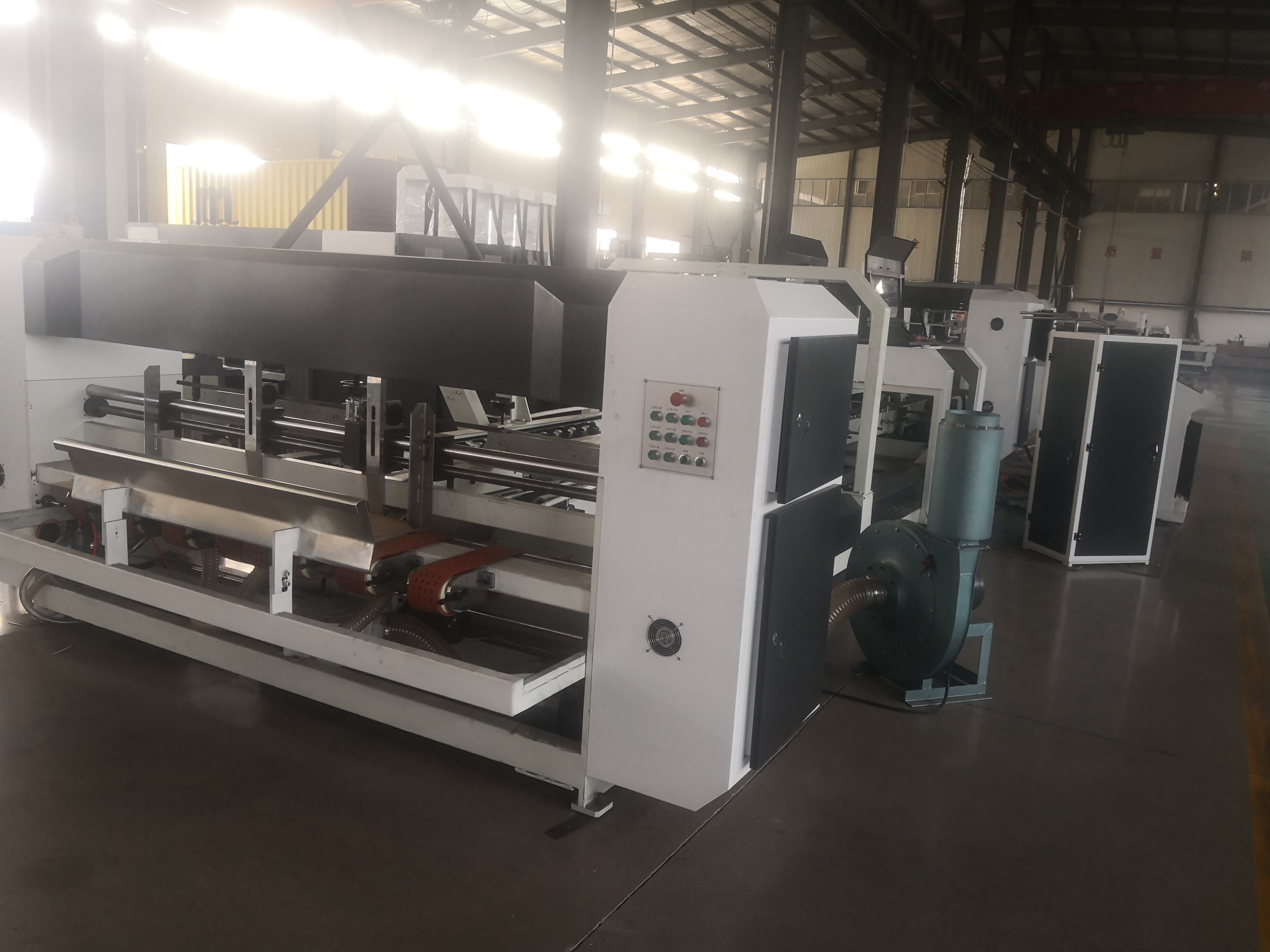

Carton Folder Gluer of Carton Machinery

The carton folder gluer machine is a process machinery after the production of cartons. It is mainly used for the bonding of single face corrugated cardboard to meet the requirements of multiple varieties and small and medium batch production, and to meet the packaging needs of food, cotton textile and other export products. It is an ideal carton machine at present. With the advantages of high efficiency, easy operation, good performance and reliable operation, it is the machine in the packaging carton industry.

The box pasting host is mainly composed of left and right wallboards, three transmission rubber rollers, one carton pressing roller, box gluing head, positioning frame, cardboard pushing and other main components.

The box pasting host is the main part of the machine. It is driven by the motor and reducer through the sprocket and chain to rotate the three driving rubber rollers. Complete the conveying action when pasting the box. The sprocket at the other end of the rubber roller is connected with the eccentric shaft sprocket by a chain. The rubber roller rotates to drive the eccentric shaft. The cardboard pusher connected with the eccentric shaft reciprocates to complete the action required for pushing the carton. The pressure roller on the roller shaft plays a bonding role when passing through, and the height is adjusted by the handwheel. www.chinacartonmachine.com

The rotation of the adhesive roller in the adhesive box head is decelerated by the motor and driven by the sprocket, so that the adhesive roller rotates to achieve the action of pasting the box. The adhesive head in the adhesive box head is removed and cleaned after the work is completed, so that the adhesive roller can rotate flexibly without being affected by the drying of the adhesive.

When pasting cartons of different sizes, the distance between positioning frames can be adjusted to complete the guiding action required by cartons of different sizes.
