Carton die cutting machine can be divided into what types?

Die cutting machine according to the function is divided into: Circular die-cutting machine, circular die-cutting machine, flat die-cutting machine three models, the following are the function of three models.

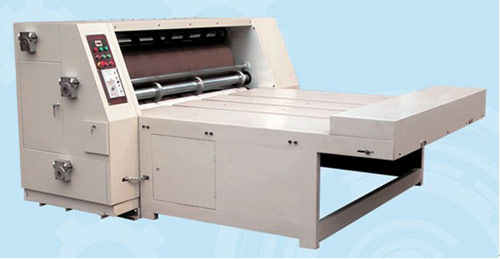

Circular die cutting machine

A roller is equivalent to an imprint roller, and pressure is applied during die cutting; The other one is the roller die. There are two types of drum cutter: wood and metal. The former is mainly used for cutting thick corrugated paperboard, while the latter is mainly used for processing metal drum cutter by chemical corrosion or electronic carving method. It is mainly used for cutting self-adhesive labels and trademarks. There is also a kind of metal drum cutter, which is mainly used for medium and high-grade long-term products, and it adopts pressure cutting or shearing mode.

Circular flat die cutting machine

Circular flat die-cutting machine is rarely used in the market, there is no professional manufacturer in China, we will not talk about it in detail here. www.chinacartonmachine.com

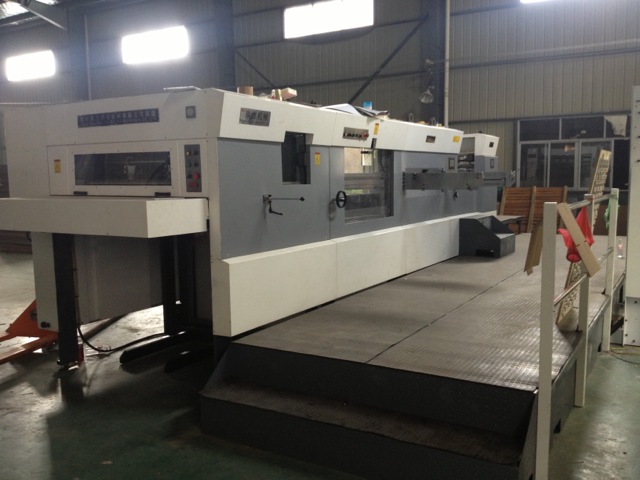

Flat die cutting machine

Flat die-cutting machine is the most widely used type at present, and it is also the most popular model of domestic and foreign manufacturers. Flat die cutting machine can be used for various types of die cutting, not only manual paper semi-automatic die cutting, but also full-automatic high-speed linkage die cutting; It can not only die cut corrugated board, cardboard, self-adhesive, but also die cut rubber, sponge, metal plate, etc.

Vertical flat die-cutting machine, commonly known as tiger mouth, its operation is similar to the bite action of the mouth, and its operation is not safe and simple to hurt people, so it is named. In any case, the image of the vertical flat die-cutting machine features. Vertical flat die-cutting machine in the structure is mainly divided into the fuselage and pressure frame two big some, die-cutting platform installed on the fuselage. According to its action method, there are two types: single pendulum and double pendulum. The so-called single pendulum type refers to the die-cutting, the press frame swing, the body does not move (that is, the plate platform does not move), the plate platform and the press frame lower part first touch, the upper part after touch, the end of the die-cutting, the upper part first off, the lower part after off, so the stress moment is different, and uneven, so less and less use, slowly screening. Double swing refers to the die-cutting, the body and the pressure frame have action, before touching the pressure frame lithography and plate is parallel, between the touch mode is parallel movement, so the pressure is large and uniform. Most of the vertical flat die-cutting machines produced belong to this type. According to the degree of automation, vertical flat die-cutting machine can be divided into semi-automatic and full-automatic two types. At present, the domestic vertical flat die-cutting machine (tiger mouth) is mainly semi-automatic, die-cutting is finished by machine, and paper feeding and receiving are finished manually. As the production quality and power are related to the operator's proficiency, and there are simple safety accidents, the United States and other developed countries have banned the use of this equipment.
